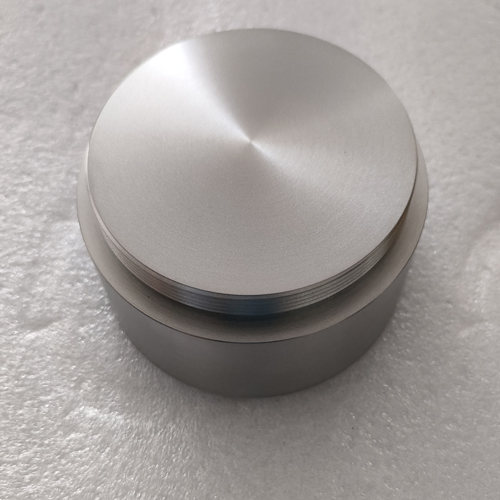

1. What is a Titanium Aluminum Chromium Alloy Sputtering Target?
A Titanium Aluminum Chromium alloy sputtering target (Ti-Al-Cr sputtering target) is a sputtering coating material composed of three metal elements: titanium (Ti), aluminum (Al), and chromium (Cr). Through physical vapor deposition (PVD) processes such as magnetron sputtering, this alloy target forms coatings with various colors and excellent wear-resistant protective properties on substrate surfaces. This material is a core consumable in PVD processes and is widely used in high-end manufacturing fields such as semiconductor integrated circuits, flat panel displays, and functional coatings.
The Ti-Al-Cr alloy belongs to the α+β type titanium alloy, with aluminum and chromium serving as solid solution strengthening elements and β-phase stabilizers. By properly adjusting the contents of titanium, aluminum, and chromium, alloy targets with different characteristics can be obtained. Typically, the atomic percentage composition ranges from Ti 5-75%, Al 10-90%, and Cr 1-20%. The target features high density, no porosity or segregation, uniform microstructure, and fine grain size.
2. Key Performance Characteristics
The titanium aluminum chromium alloy sputtering target exhibits outstanding comprehensive performance in coating applications due to its unique material properties:
High Purity: Purity levels from 99.95% to 99.9999% ensure consistency and reliability during the coating process.
High Density and Uniformity: Dense structure, uniform composition distribution, free from porosity and segregation defects, ensuring stable sputtering performance.
Fine Grain Size: Refined grain structure helps improve film uniformity and adhesion.
Excellent Mechanical Properties: Coatings deposited by reactive sputtering of Ti-Al-Cr alloy targets offer high hardness and strong adhesion, enabling continuous cutting, especially for difficult-to-machine materials.
Good Oxidation Protection: Ti-Al-Cr coatings deposited using Ti-51Al-12Cr targets can be used for oxidation protection of titanium alloys.
High Temperature Stability: Relevant coatings show excellent performance in dry milling tests on high-chromium steel, with thermal stability exceeding 1200°C and hardness reaching 32-35 GPa.
3. Manufacturing Processes
The following main technical routes are available for producing Ti-Al-Cr alloy sputtering targets, allowing manufacturers to choose the most suitable process based on specific needs:
3.1 Powder Metallurgy (PM)
This is currently a widely used method. The process includes: preparation of alloy powder → cold isostatic pressing (CIP) → degassing → hot isostatic pressing (HIP) → machining. This method effectively solves the densification problem of high-melting-point metals (such as chromium), producing targets with uniform microstructure and fine grains. It is particularly suitable for high-melting-point alloys and doped alloys.
3.2 Vacuum Melting
For reactive metals like titanium, vacuum melting effectively prevents oxidation. The alloy is melted at high temperature and then cast into shape, suitable for mass production of large-sized targets.
4. Core Application Areas
Titanium aluminum chromium alloy sputtering targets and their nitride coatings prepared by reactive sputtering have broad application prospects in the following fields:
4.1 Cutting Tools and Mold Coatings
Depositing (Cr,Ti,Al)N gradient coatings or multi-component nitride coatings via magnetron sputtering or arc ion plating significantly improves the surface hardness and wear resistance of tools, drills, and molds, extending their service life. Multi-arc TiAlN coatings can increase tool life by 5-7 times. These hard coatings are widely used in cutting tools, precision molds, and mechanical components.
4.2 Decorative and Protective Coatings
In addition to providing different film colors, Ti-Al-Cr alloy coatings offer excellent wear protection. They are widely used in electronic product housings, eyeglass frames, high-end watch dials, and other decorative/protective applications, effectively protecting objects from wear and extending service life.
4.3 Semiconductor and Photovoltaic Industries
Alloy targets are key consumables in physical vapor deposition processes. Their high purity and excellent film-forming properties meet the stringent technical requirements for functional films in semiconductor integrated circuits, photovoltaic solar cells, and other applications.
4.4 Aerospace High-Temperature Protection
Ti-Cr-Al coatings can be applied to titanium alloy substrates for high-temperature oxidation protection, meeting the demanding requirements of the aerospace industry for high-performance protective coatings.
5. Why Choose Our Titanium Aluminum Chromium Alloy Sputtering Target?
As a professional sputtering target supplier, we offer Ti-Al-Cr alloy sputtering targets with the following core advantages:
High Purity: Purity grades ranging from 99.9% (3N) to 99.999% (5N) meet all application needs from industrial coatings to high-end semiconductor uses.
Highly Customizable: Customized alloy ratios, dimensions, and shapes available upon request.
Excellent Consistency: Advanced powder metallurgy or vacuum melting processes ensure stable composition and uniform microstructure from batch to batch.
Professional Technical Support: Our team has years of deep experience in functional coating, providing comprehensive technical support from target selection to coating process optimization.
Contact us for product quotes or technical consultation. We will provide you with the best-matched high-quality titanium aluminum chromium alloy sputtering target and one-stop coating solutions.
