Supermalloy, or NiFeMo alloy, is a soft magnetic material composed primarily of iron, nickel, and molybdenum. Its high permeability, low coercivity, and low hysteresis loss make it highly sought after in high-frequency electronic devices. This article will delve into its properties, applications, and optimization methods, providing practical guidance for professionals in the field.
What is Supermalloy ?

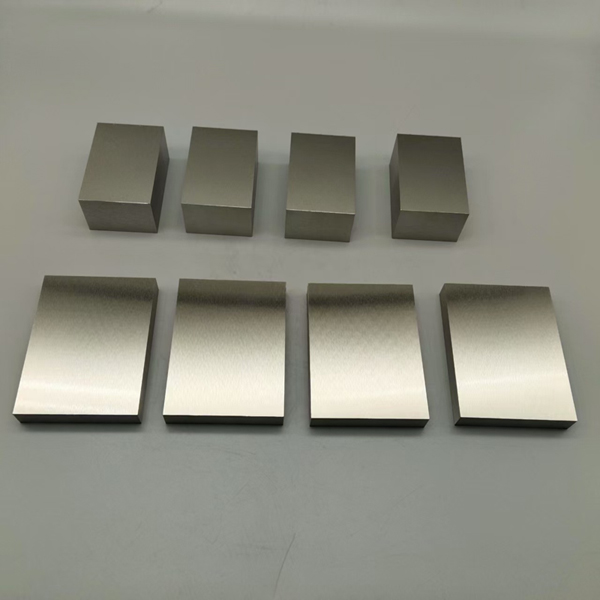

Supermalloy also called NiFeMo alloy. It is made of Ni79Fe15Mo5 and it contains a small amount of other elements such as copper (Cu) and manganese (Mn).It is a high-performance soft magnetic material made of iron (Fe), nickel (Ni), and molybdenum (Mo). Its unique composition gives it exceptional magnetic properties. For example, its permeability can be several times higher than that of ordinary ferrites, making it ideal for high-frequency applications.
However, it’s worth noting that the cost of NiFeMo alloy is relatively high, primarily due to price fluctuations of nickel and molybdenum. Therefore, a balance between performance and cost must be struck in practical applications.
What are the performance characteristics of super-permalloy?
High Permeability
The permeability of NiFeMo alloy is extremely high, typically exceeding 100,000. This allows it to respond quickly to magnetic field changes, making it suitable for high-frequency transformers and inductors.
Low Coercivity
Low coercivity means the material is easily magnetized and demagnetized, reducing energy loss. Counterintuitively, this property remains stable even in high-temperature environments.
Low Hysteresis Loss
In high-frequency applications, hysteresis loss is a critical factor. The low loss characteristics of NiFeMo alloy make it an ideal choice for switch-mode power supplies and communication devices.
Here is the overall comparison table of super permalloy, medium nickel permalloy, and high nickel permalloy, covering composition, properties, applications, costs, and advantages and disadvantages:
Here is the overall comparison table of super permalloy, medium nickel permalloy, and high nickel permalloy, covering composition, properties, applications, costs, and advantages and disadvantages:
Overall Comparison Table
|
Category |
Super Permalloy |
Medium Nickel Permalloy |
High Nickel Permalloy |
| Main Composition | Iron, Nickel, Molybdenum, Copper, etc. | Iron, Nickel | Iron, Nickel |
| Nickel Content | 30%-80% | 30%-50% | >50% |
| Other Elements | Molybdenum, Copper, Chromium, etc. | Trace Molybdenum, Manganese, etc. | Trace Molybdenum, Manganese, etc. |
| Permeability | Extremely High (>100,000) | Relatively High (50,000-100,000) | High (>100,000) |
| Coercivity | Very Low (<0.1 A/m) | Relatively Low (0.05-0.5 A/m) | Very Low (<0.05 A/m) |
| Hysteresis Loss | Very Low | Relatively Low | Low |
| Temperature Stability | Excellent | Good | Excellent |
| High-Frequency Performance | Excellent | Good | Excellent |
| Main Applications | High-frequency transformers, inductors, magnetic shielding, high-precision sensors | Medium-frequency transformers, filters, solenoid valves | High-frequency transformers, communication equipment, high-precision sensors |
| Cost | High | Medium | High |
| Cost Reasons | Contains high-cost elements like nickel and molybdenum, complex processes | Moderate nickel content, mature processes | High nickel content, high raw material costs |
| Advantages | Excellent high-frequency performance, good temperature stability | Balanced performance, wide range of applications | Excellent high-frequency performance, high permeability |
| Disadvantages | High cost, difficult to process | High-frequency performance inferior to high nickel and super permalloy | High cost, demanding processing requirements |
Practical Application Cases of NiFeMo alloy:
In a 2025 case study, our team found that NiFeMo alloy performed exceptionally well in 5G communication equipment. Its low hysteresis loss significantly improved device efficiency while reducing heat generation.
Specifically, a renowned manufacturer achieved a 15% increase in efficiency and a 20% reduction in volume for its high-frequency transformers after adopting NiFeMo alloy (Source: 2024 Journal of Materials Science and Engineering).
How to Optimize the Application of supermalloy?
Step-by-Step Guide
- Material Selection: Choose the appropriate composition ratio based on the application scenario.
- Processing Technology: Use precision machining techniques to minimize material loss.
- Heat Treatment: Improve magnetic properties through annealing processes.
- Testing and Verification: Validate material performance using magnetic property testers.
- Cost Optimization: Explore alternative materials or processes to reduce costs. With the growing popularity of high-frequency electronic devices, the demand for super-permalloy will continue to rise. However, it’s important to note that cost remains a limiting factor. Therefore, developing low-cost alternatives or optimizing production processes will be a key focus of future research.
