In magnetron sputtering processes, target-to-backing-plate bonding is often treated as a secondary “auxiliary step” and receives insufficient attention. However, in actual production, issues such as target delamination, localized burn-through, non-uniform film thickness, and target cracking can most often be traced back to bonding quality. Bonding quality directly determines heat dissipation efficiency, power tolerance, and target service life—it is the critical bridge connecting “target material performance” with “film quality.”
This article systematically reviews the mainstream target bonding methods, compares their principles, advantages, disadvantages, and application scenarios, and provides selection recommendations.
1. Why Does a Target Need Bonding?
During sputtering, the target surface is bombarded by high-energy particles, converting a substantial portion of energy into heat. At high-power sputtering levels (5–20 kW or higher), the target surface temperature can rapidly exceed 200°C. If heat cannot be efficiently conducted away, the target may crack due to thermal stress (particularly for brittle ceramic targets), the solder may melt and flow out, or the target may even separate from the backing plate.

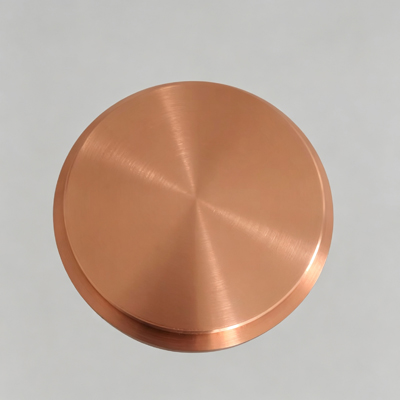

The backing plate serves two core functions: mechanical support and thermal management. It secures the target to the sputtering gun and dissipates heat through efficient thermal conduction. A high-quality bond layer must possess the following characteristics:
Low thermal resistance – enabling higher applied power without overheating the target.
Low void content – preventing localized hot spots that cause cracking or non-uniform deposition.
sufficient bond strength – preventing target detachment during handling or sputtering.
Reworkability (where applicable) – allowing the backing plate to be reused, reducing overall cost.
2. Comparison of Mainstream Bonding Methods
Based on the bonding medium and process principle, the mainstream methods can be divided into three major categories.
2.1 Solder Bonding (Metallic Brazing) – The Most Widely Adopted Solution
Solder bonding is the most commonly used method, employing a low-melting-point metal solder—most often indium (melting point 156°C)—as the filler material between the target and backing plate. The typical process flow includes: surface preparation → heating above the solder melting point → solder application → pressing → cooling and solidification.
Key Advantages:
High thermal conductivity: Metallic solders offer far superior thermal conduction compared to adhesives, supporting higher deposition rates.
Indium’s unique properties: Indium features high thermal conductivity, a low melting point (simplifying rework), low elastic modulus (reducing residual stress), and can be bonded in air with manageable cost.
Reusable backing plates: Heating above indium’s melting point allows for target detachment and backing plate reuse.
Limitations:
Relatively high cost of indium (approximately $200–250/kg).
Thermal fatigue over repeated cycles: Repeated heating and cooling may gradually loosen or crack the solder layer.
Power ceiling: With a melting point of only 156°C, insufficient cooling or excessive power can cause the solder to reflow and fail.
2.2 Adhesive Bonding (Silver-Filled Epoxy) – Low-Cost, Low-Power Solution
Adhesive bonding uses thermally and electrically conductive epoxy resins (often filled with silver particles) to adhere the target to the backing plate.
Applicable Scenarios:
Temperature-sensitive or brittle targets that cannot withstand soldering temperatures.
Low-power-density R&D or small-batch production.
Cost-sensitive applications where rework convenience is valued.
Pros and Cons:
| Advantages | Disadvantages |
|---|---|
| Lowest cost | High thermal resistance, limiting power density and deposition rate |
| Low residual stress | Susceptible to aging and degradation at elevated temperatures |
| Simple process; no heating equipment required | Higher risk of delamination |
Case in point: In one instance, a customer insisted on using a certain imported thermal conductive adhesive. Within two months, the adhesive layer delaminated, heat could no longer be conducted away, and the target surface developed burn-through holes, rendering it completely unusable.
2.3 High-Temperature Welding (Diffusion Bonding / Vacuum Brazing) – The Choice for High-End Applications
High-temperature bonding is typically performed above 500°C in vacuum or controlled atmospheres, and includes two subtypes:
Diffusion Bonding: No filler material is used. High temperature and pressure enable atoms at the target–backing plate interface to interdiffuse, forming a metallurgical bond. The bond strength is extremely high, and thermal resistance approaches that of the parent metals—ideal for high-power semiconductor-grade applications.
Vacuum Brazing: A brazing filler (e.g., SnAgCu alloys) is used in a vacuum environment. This method offers high cleanliness and is well-suited for oxidizable or precious metal targets.
Key Advantages:
Ultra-low thermal resistance – supports the highest power densities.
High bond strength: For example, SnAgCu brazing achieves shear strengths of 15–18 MPa and service temperatures above 200°C.
Clean, flux-free: Vacuum conditions prevent oxide formation and residues.
Constraints
High cost: Equipment investment and process control are demanding.
Critical CTE matching: If the coefficient of thermal expansion (CTE) of the target and backing plate differ significantly, substantial internal stress develops upon cooling, potentially causing bowing or even cracking. For instance, bonding TiB₂ (CTE 8.1 μm/°C) to a molybdenum backing plate (CTE 4.8 μm/°C) results in visible bowing due to thermal mismatch.
Non-reusable backing plates: The metallurgical bond formed by diffusion bonding cannot be separated nondestructively.
An Emerging Alternative: Reactive Multilayer Foil (Nanobonding)
This technique uses a reactive foil placed between the target and backing plate. Ignition generates localized heat (up to 380°C) sufficient to form a metallic bond in milliseconds, while the bulk target temperature remains close to ambient. This avoids altering the target’s microstructure or the backing plate’s mechanical properties—a significant advantage for materials with low recrystallization temperatures (e.g., aluminum, copper).
3. Critical Process Control Points
Regardless of the method chosen, bonding success often hinges on a few easily overlooked details:
1.Surface Preparation: The flatness (e.g., ≤0.1 μm) and roughness (e.g., Ra 2–3 μm) of the bonding surfaces, along with thorough oxide removal, directly affect solder wettability and bond strength.
2.Cleanliness Control: Oil residues or cutting fluid contaminants on target or backing plate surfaces are hidden killers of bond integrity. In rotary target bonding, fluorescence-based quantitative cleanliness measurement (using RFU values) has become an industry practice. Residual contamination leads to localized non-wetting and reduced bond coverage.
3.CTE Mismatch Mitigation: For material pairs with large CTE differences (e.g., silicon target + aluminum backing plate), consider using a backing plate material with a closer CTE match (e.g., molybdenum), or adopt low-temperature bonding techniques like reactive multilayer foil to circumvent thermal stress.
4. Selection Decision Reference.
| Application Scenario | Recommended Bonding Method | Key Rationale |
|---|---|---|
| High-power production (semiconductor-grade) | Diffusion bonding / Vacuum brazing | Lowest thermal resistance, highest strength, high-temperature tolerance, no solder reflow risk |
| Conventional metal/oxide targets, moderate power | Indium solder bonding | Best overall balance: good conductivity, reworkable, cost-effective |
| Temperature-sensitive/brittle targets, low-power R&D | Silver-filled epoxy / adhesive bonding | Low-temperature process, minimal residual stress, simple operation |
| Oxidizable or precious metal targets | Vacuum brazing | Oxygen-free environment, high cleanliness |
| Severe CTE mismatch combinations | Reactive multilayer foil (Nanobonding) | Room-temperature bonding, eliminates thermal stress, preserves target grain structure |
Bonding is far more than “just gluing it on.” It is a system-level engineering challenge that integrates materials science, thermodynamics, and precision machining. Understanding the principles and boundaries of each bonding method is essential to avoid the all-too-common situation where “the target is fine, but the bonding failed.” A well-chosen bonding solution not only improves process stability and yield but also extends target life and reduces overall cost of ownership.
