In Physical Vapor Deposition (PVD) and magnetron sputtering processes, the target material, as the source for thin-film deposition, directly determines the final coating’s performance. Titanium targets and titanium aluminum targets are two crucial materials widely used in semiconductors, decorative coatings, tool coatings, and optical thin films. This article provides an in-depth comparison of these two target materials across multiple dimensions to help you make an informed choice based on specific application needs.
Differences in Material Composition and Structure

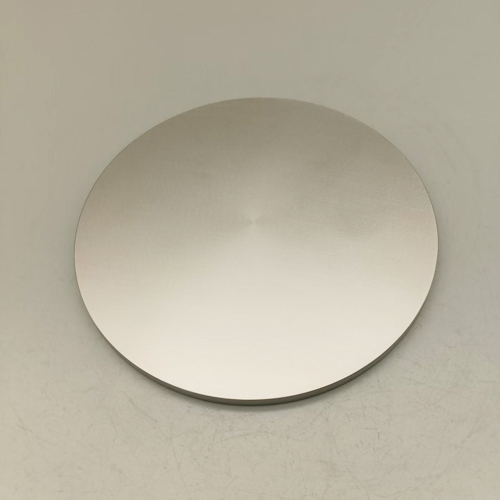

Titanium Targets
Basic Composition: Typically high-purity titanium with 99.9%-99.995% purity
Crystal Structure: Alpha phase hexagonal close-packed (HCP) structure at room temperature, transforming to beta phase body-centered cubic (BCC) structure above 882°C
Common Forms: Available in various specifications such as planar targets and rotary targets

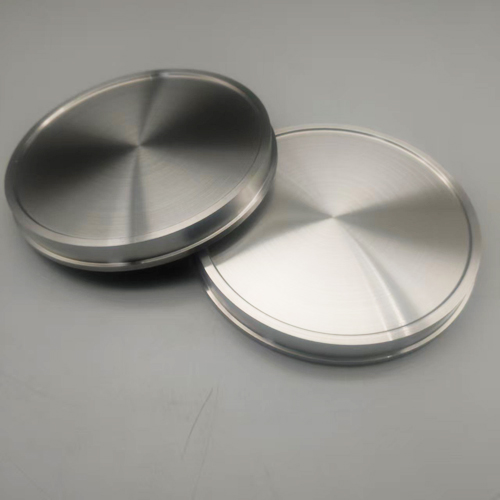

Titanium Aluminum Targets
Basic Composition: Alloy of titanium and aluminum, common ratios include TiAl (50:50) or Ti₃Al (75:25)
Crystal Structure: Typically forms ordered intermetallic structures like γ-TiAl or α₂-Ti₃Al
Alloy Advantage: Combines titanium’s strength with aluminum’s lightweight properties for a unique performance profile
Comparison of Physical and Chemical Properties
Mechanical Properties
Titanium Targets:
Density: 4.51 g/cm³
Melting point: 1668°
Moderate strength, good toughness
Relatively low hardness
Titanium Aluminum Targets:
Density: 3.7-4.0 g/cm³ (approximately 15-20% lighter than pure titanium)
Melting point: Approximately 1460°C
Excellent high-temperature strength, maintaining good mechanical properties at 600-800°C
Significantly higher hardness
Corrosion Resistance
Titanium Targets: Excellent corrosion resistance in oxidizing and neutral media, particularly outstanding in seawater and chloride environments
Titanium Aluminum Targets: Significantly better oxidation resistance than pure titanium, capable of forming protective Al₂O₃ layers in high-temperature oxidizing environments
Thermal Properties
Titanium Targets: High thermal expansion coefficient , low thermal conductivity
Titanium Aluminum Targets: Lower thermal expansion coefficient , better high-temperature stability
Analysis of Application Field Differences
Main Applications of Titanium Targets
Decorative Coating Field: Used to prepare titanium nitride (TiN) golden coatings, widely applied in watches, jewelry, bathroom hardware
Tool Coatings: Base material for TiN, TiCN, TiAlN coatings to improve wear resistance of cutting tools and molds
Semiconductor Industry: Barrier layers and adhesion layers in integrated circuits
Biomedical: Biocompatible coatings for orthopedic and dental implants
Optical Thin Films: Anti-reflective and reflective films for glasses, lenses, etc.
Main Applications of Titanium Aluminum Targets
High-Performance Tool Coatings: TiAlN coatings offer higher hardness and oxidation resistance temperature compared to TiN
Aerospace: Protective coatings for high-temperature components like turbine blades
Automotive Industry: High-temperature protective coatings for engine components
Wear-Resistant Components: Applications requiring extremely high surface hardness and high-temperature oxidation resistance
Process Performance and Sputtering Characteristics
Sputtering Rate
Titanium Targets: Higher sputtering rate, good deposition efficiency, mature and stable process
Titanium Aluminum Targets: Slightly lower sputtering rate than pure titanium due to higher alloy strength, but more sensitive to process parameters
Thin-Film Quality
Titanium Targets: Lower internal film stress, good adhesion, easy to prepare uniform and dense films
Titanium Aluminum Targets: Higher film hardness, but relatively greater internal stress requiring optimized process parameters for stress control
Process Control
Titanium Targets: Wide process window, easy to control, suitable for large-scale stable production
Titanium Aluminum Targets: More sensitive to process parameters (such as nitrogen flow, temperature, bias voltage), requiring precise control to achieve ideal chemical composition
Cost-Effectiveness Analysis
Material Cost
Titanium Targets: Relatively low cost with stable raw material prices
Titanium Aluminum Targets: Typically 20-40% higher cost due to aluminum addition and more complex preparation processes
Service Life
Titanium Targets: Uniform wear with predictable service life
Titanium Aluminum Targets: Higher hardness and stronger resistance to sputtering erosion, longer life per unit cost
Comprehensive Benefits
Titanium targets offer better cost advantages for conventional decorative coatings and medium-low temperature applications
For high-temperature, high-wear-resistance scenarios, titanium aluminum targets, despite higher initial investment, provide better overall benefits due to performance advantages
Selection Guide: How to Make Decisions Based on Needs
When to Choose Titanium Targets
Need for excellent corrosion-resistant coatings
Decorative coating applications, particularly golden TiN coatings
Cost-sensitive medium-low temperature applications
Applications requiring excellent film uniformity and adhesion
Biomedical implant coatings
When to Choose Titanium Aluminum Targets
High-temperature applications
Cutting tool coatings requiring extremely high hardness
Aerospace and automotive engine components
Applications requiring excellent oxidation resistance
Applications with lightweight requirements
Conclusion
Titanium targets and titanium aluminum targets each have unique performance advantages and application fields. Titanium targets dominate in decorative coatings, biomedical applications, and conventional tool coatings due to their excellent corrosion resistance, good processability, and cost-effectiveness. Meanwhile, titanium aluminum targets excel in high-end tool coatings, aerospace, and other demanding environments thanks to their outstanding high-temperature performance, high hardness, and oxidation resistance.
When selecting, the key is to comprehensively evaluate based on specific application requirements, working environment, performance needs, and budget constraints. With continuous advancements in materials science and coating technology, both target materials will continue to optimize and upgrade, providing higher-quality thin-film solutions for various industries.
For most applications, small-scale trials are recommended to evaluate actual coating results and performance before making a final decision. Collaborating with professional target material suppliers and technical teams can provide the best material recommendations and process support for specific applications.
